PERFORMANCE TECHNIQUES T04E 60 TRIM TURBO UPGRADE

I got my T04E 60 trim compressor upgrade from:
Performance Techniques
346 South "I" Street, #3
San Bernardino, CA. 92410
(909) 824-1020.

With the SOGI discount, the total was $750.00. The price would have been $450.00 if my core had been good, but they said that it wasn't and had to get me a new core, so the price was $750.00. It is a stock unit with a new larger compressor wheel. The stock compressor housing has been machined to fit the new wheel. The center section and turbine side were rebuilt back to stock specs. I decided to go with the T04E and a 60 trim. There are several trim levels available.

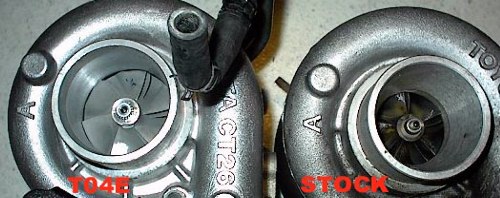

stock next to upgrade compressor side

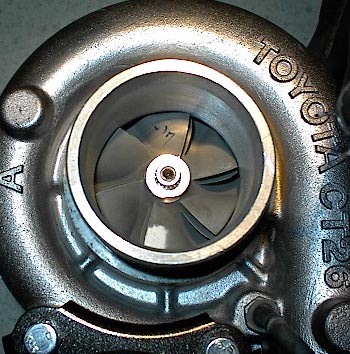

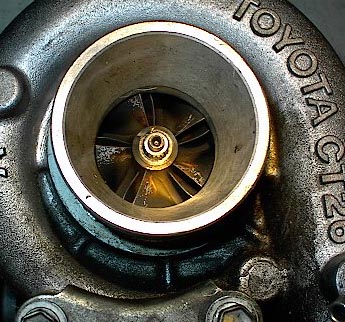

upgrade compressor wheel stock compressor wheel
Besides looking like a new turbo, the biggest difference I noticed was the size of the intake wheel. The t04e 60 trim compressor wheel has a 2.290" inducer and a 2.950" exducer while the stock CT-26 compressor wheel has a 1.811" inducer and a 2.559" exducer. Adding the two together and getting an average, that is 2.1850" vs. 2.6200" for an average size difference of (0.4350") about one half inch.

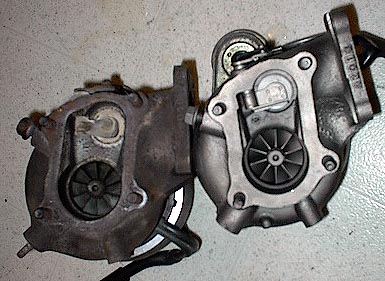

stock next to upgrade exhaust side
Exhaust side

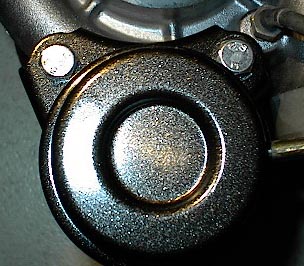

waste gate actuator
I took advantage of having the actuator off so I painted it so it would look new too. This is the turbo that I made 437 RWHP/469 RWTQ at 18 psi with! I used the stock intercooler with PVC pipes, stock fuel injectors, no fuel computers, Walbro GSS-315 and SX AFPR at 37 psi, 12 deg timing, no race fuel, no tricks on a hot rainy day!


Turbo Joel...
Joel Britt has the best pricing and service on rebuilds and balancing plus new and hybrid turbos. Full T04 turbos (not an upgrade CT) $350.00-$450.00. Best I've found anywhere.
Call 1-888-253-9950 (or 602-253-9953) and ask for Joel. You'll be glad you did!
turbo joel 1 turbo joel 2
