Intercooler/Radiator
John B. Lunsford
JBLMk3
Asheville, NC

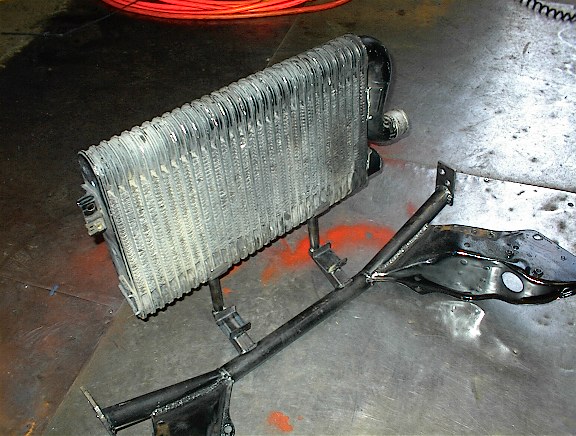

I had to make a new radiator support to be able to mount the intercooler where I wanted it.

Rad Sup

Rad Sup
The yellow arrows are where it bolts to the frame. The red arrows are where the intercooler sits and the blue arrows are where the radiator sits.

Rad Sup

Rad Sup
